Cut & Gouge Resistant Belt
In some critical conveyor installations, there are cases where the normal expected belt life significantly deteriorates due to premature failure and/or lower belt service life, caused due to higher impact of material on to the belt surfaces resulting faster wearing out of top cover rubber as well as cut and tear of top cover rubber.
Failures are catastrophic and impose heavy financial losses due to stoppage of production and downtime.
For such applications demanding the highest impact, cut and tear resistance, KBPL recommends CUT & GOUGE-SUPER ABRASION RESTSTANT GRADE BELTS to avoid faster cut and tear as well as to prevent from faster wearing out of top cover rubber.
THESE ARE USED TO CARRY THE FOLLOWING

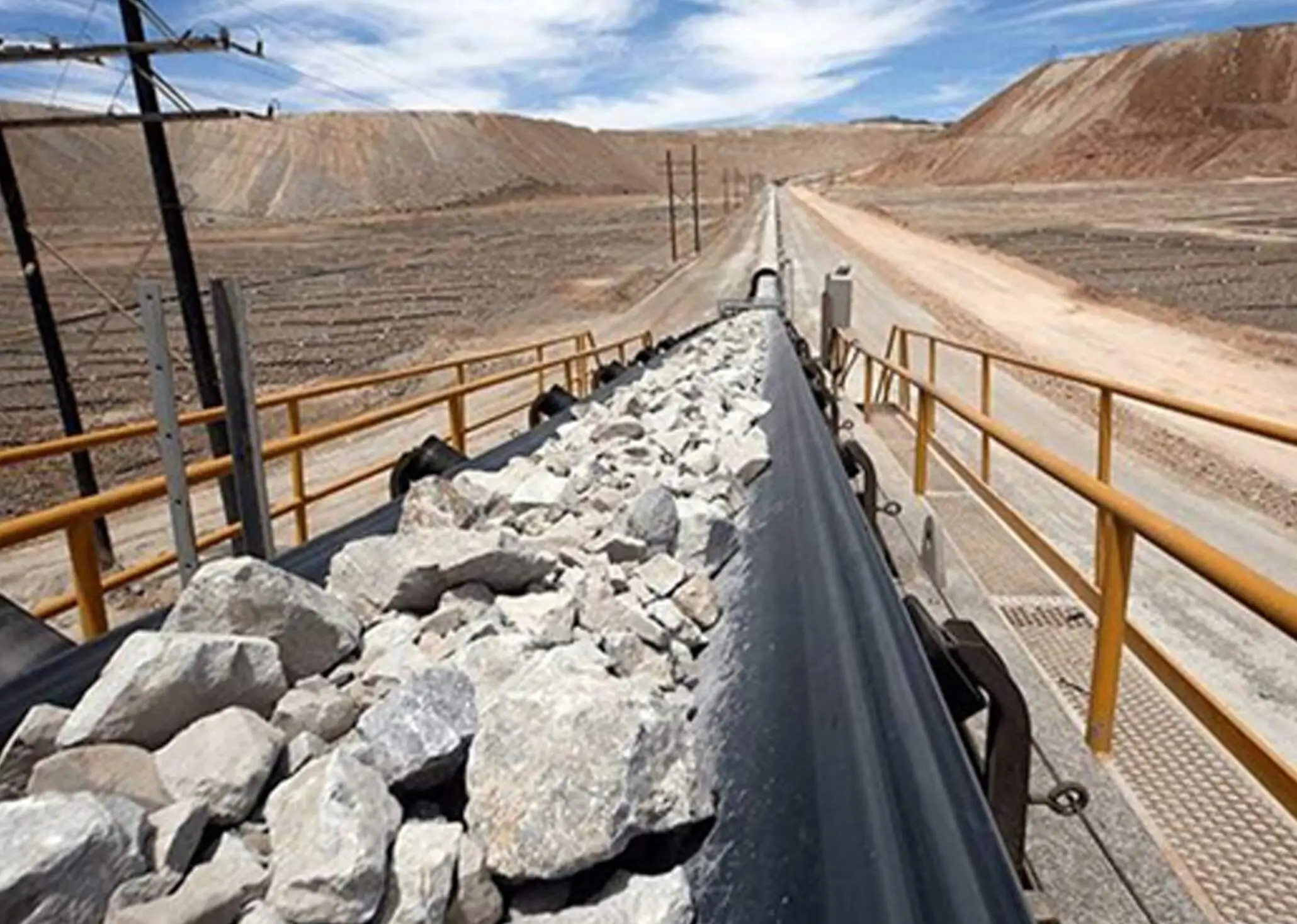

Limestone | Copper | Iron Ore | Mining Industries
BENEFITS
High resistance to extreme impact loads.
High Cut & tear resistance.
Minimum Volume loss of top cover rubber.
COVER PROPERTIES:
| Grades | Standards | Tensile strength (MPa), Min. | Minimum elongation at Break (%) | Abrasion Loss (mm³), Max. |
|---|---|---|---|---|
| XCG | KBPL standard | 22 | 450 | 120 |
| XCG-SAR | KBPL standard | 18 | 450 | 70 |
